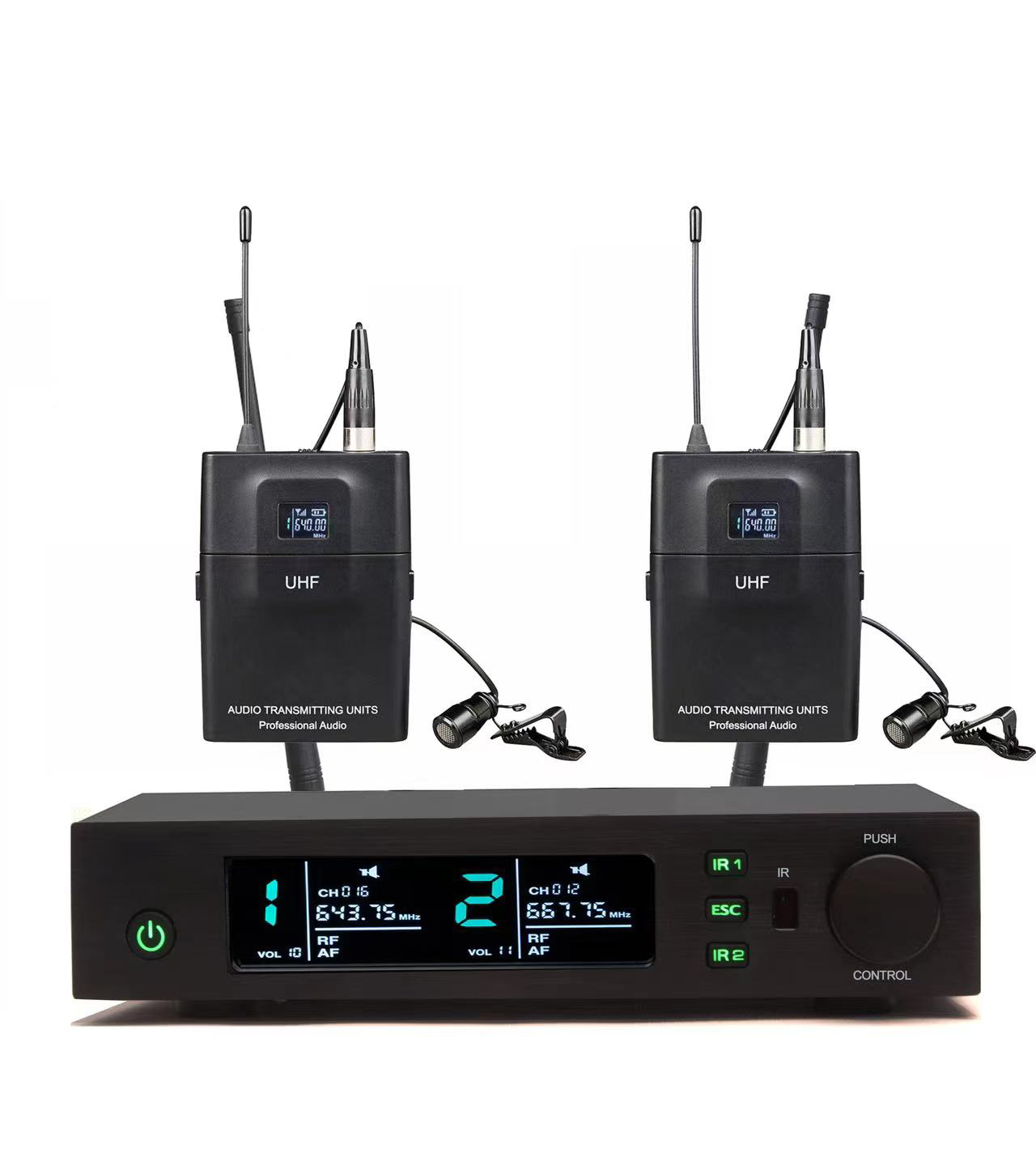

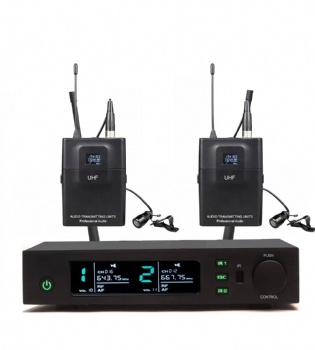

Dual channels wireless microphone system

Main features:

*Using the UHF610~690MHz frequency band, applying PLL frequency synthesis phase-locked loop technology, the frequency is adjustable, and 5 sets can be used at the same time without interference.

* The total control of the integrated central processing unit CPU, with the digital LCD interface display, is easy to operate and has outstanding performance.

*Using multi-stage narrow-band high-frequency and intermediate-frequency frequency selective filtering to fully eliminate interference signals.

* Using audio compression and expansion technology, the noise is greatly reduced and the dynamic range is increased.

*It is equipped with the function of reducing the feedback whistle, which can effectively reduce the feedback whistle.

* The receiver adopts multi-stage high frequency amplification, which has extremely high sensitivity.

*The ideal space usage distance is 80 meters.

Receiver parameters:

Working frequency: UHF610~690MHz (adjustable)

DC input voltage: DC12V 1000mA Ad hoc reception sensitivity selector switch

Oscillation Mode: Dual Phase Locked Frequency Synthesis (PLL)

Adjustment method: FM

Maximum frequency deviation: ±50KHz

Frequency response: 60Hz～18000Hz

Signal-to-noise ratio: ≥89dB Low frequency attenuation: 125Hz 6dB/OCTAVE

Output impedance: 250Ω

Maximum withstand sound pressure: 135dB SPL 1KHz at 1% T.H.D

Dynamic range: ≥105dB

S/N signal-to-noise ratio: >98dB

T.H.D distortion: <0.5%

Transmitter parameters:

Working frequency: UHF610~690MHz (adjustable)

Transmitting antenna: Built-in Microstrip antenna

Transmitter Structure: Metal Tube

Transmitter indication: POWER switch indication, low voltage indication, frequency confirmation indication

Transmitter Operation: Power control

Transmitting power: 10mW

Oscillation mode: PLL frequency synthesis (PLL)

Frequency Stability: ≤±0.005%

Modulation mode: FM

Maximum frequency deviation: ±50khz

Frequency selection: Receiver selection, infrared frequency to determine the transmitter operating frequency

Pickup type: Heart-type moving ring

Working power: 2 *AA  size battery

Working current: ≤100Am
